Fast, efficient, ready for industrial loT
Longevity: Future-proof as 5G replaces LTE
Faster: 220/120Mbps vs LTE Cat 4’s 150/50Mbps
Better coverage: 2dB sensitivity gain
Easy migration: Pin-to-pin and software compatible with existing LTE/5G modules
Lower power: 4nm vs 28nm process
Richer features: Network slicing, 5G LAN, eDRX

Key Info
- 3GPP Rel-17 5G RedCap
- SDX35 chipset based
- Mode: RedCap / 5G SA / LTE
- SKU: Global, North America, Europe (+)
- Form factor: LGA / M.2 / Mini PCle
- Optional: eSIM / GNSS / VoLTE / VoNR
- Cellular antenna: 1T2R / 1T1R
SoC architecture
- SoC architecture based on module
- 0penWRT V22.03
- Arm Cortex-A7 1.7 GHz
Abundant hardware interfaces
- PCle 2.0 x 1
- SGMII x 1
- USB 2.0 x 1
- Compatibility

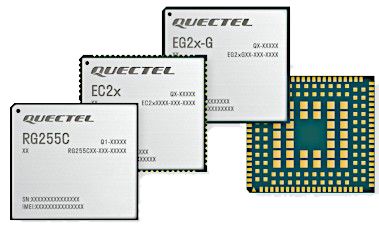

- RG255C, RG255G, EC2x, and EG2x-G series modules, each measuring 29mm x 32mm, are compatible with one another
Sample Applications
- Fixed wireless access
- Mobile cameras
- Industrial applications
- Smart glasses
- Alarm panels
- Beltpack speakers / transmitters
