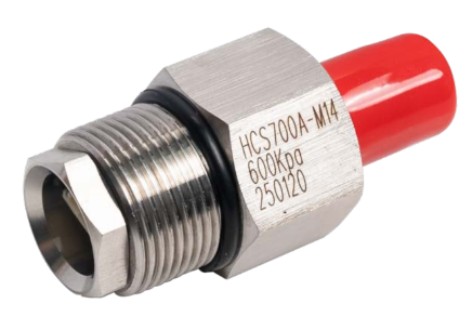

The HCS700A employs a MEMS pressure sensor with an 12C interface to provide accurate Temperature, and Pressure data. The sensor Pressure and Temperature outputs are digitized by a high resolution 24-bit ADC. Data compensation is integrated internally to save the effort of the external host MCU system. Typical active supply current is 5.3uA per measurement-second.
Key Features
- Operation temperature: -40~85°C
- Supply voltage: 1.8~3.6V
- Pressure range: 0~700Kpa
- High-speed 12C digital interface
- Standby current: <0.1uA

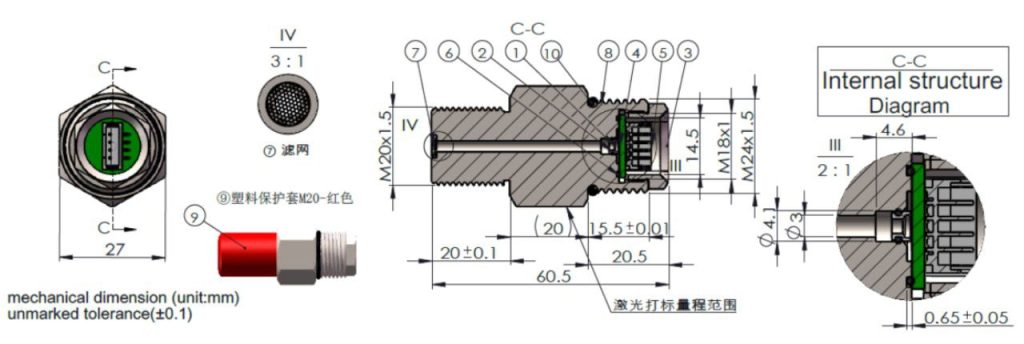

- Design with stainless steel shell
Applications
- Water pressure monitoring
- Gas pressure monitoring
- Fire system monitoring
- Industry control
- Medical equipment
