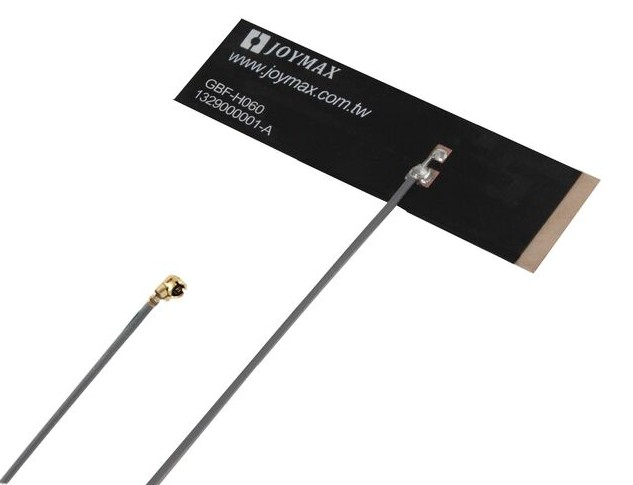

The Joymax GBF-H060MP3B antenna is an adhesive-mount, flexible print circuit (FPC) board, monopole antenna designed for use in Sub-1 GHz 868 MHz and 915 MHz frequency bands supporting low-power, wide-area (LPWA) applications including LoRaWAN®, Sigfox®, Wi-SUN®, Weightless-P™, and WiFi HaLow™ as well as other unlicensed ISM applications in the 868 MHz and 915 MHz frequency range.
The antenna provides an internal/embedded antenna solution to easily mount in RF transparent (e.g. plastic) enclosures, enabling environmental sealing and for protection from antenna damage. Connection is made to the radio via a coaxial cable terminated in an MHF plug connector.
Features
- Bandwidth: 862 MHz to 930 MHz
- Adhesive backing permanently adheres to non-metallic enclosure/chassis using 3M 467MP
- Ground plane independent performance
- Compact size, low profile, 60 x 18 x 0.25 mm
