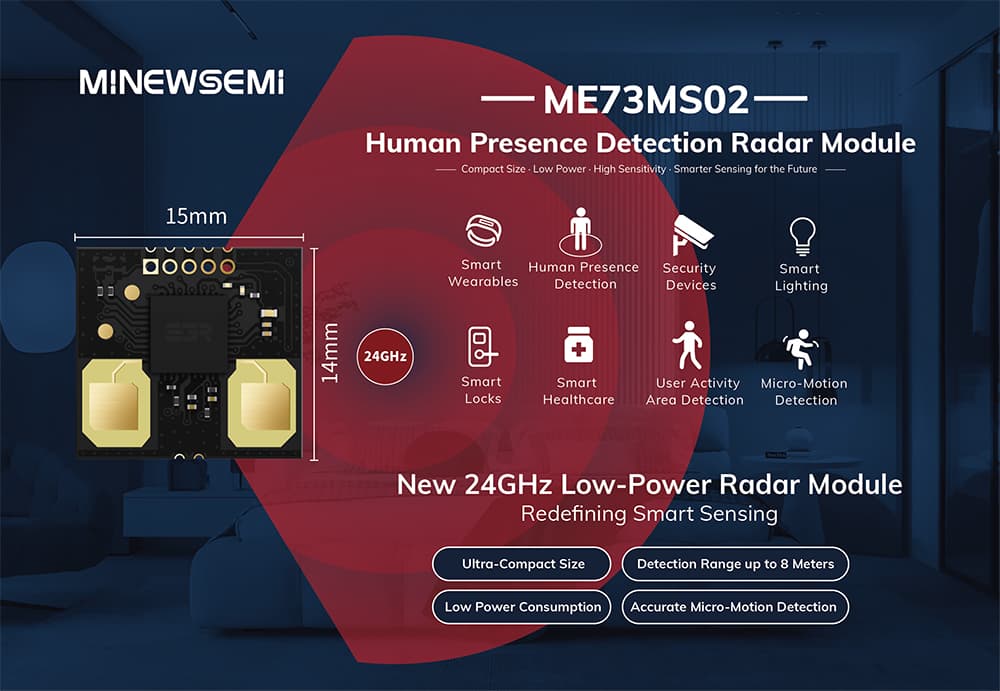

The ME73MS02 is a compact, low-power, high-sensitivity, and cost-effective millimeter-wave radar module based on the SGR SoC. It features an ARM Cortex-M4 MCU operating at 108 MHz. Its efficient data processing ensures detection sensitivity and accuracy, unaffected by environmental factors such as dust, light, and fog, and boasts a maximum detection range of 8 meters.
Key Features
- Working Frequency: 24~24.25GHz
- Module Size: 15 x 14 x 1 mm
- Azimuth Coverage: ±60°
- Transmitting and Receiving Current: 60mA
- Antenna: PCB
- Installation Method: wall Mount
- Detection Distance: 0.5 ~ 8m
- Pitch Angle Coverage: ±60°
- Avg Current: 20mA
- Data Interface: UART
Applications
- Smart home
- Consumer electronics
- Smart medical care
- Smart wearable devices
- Security devices
