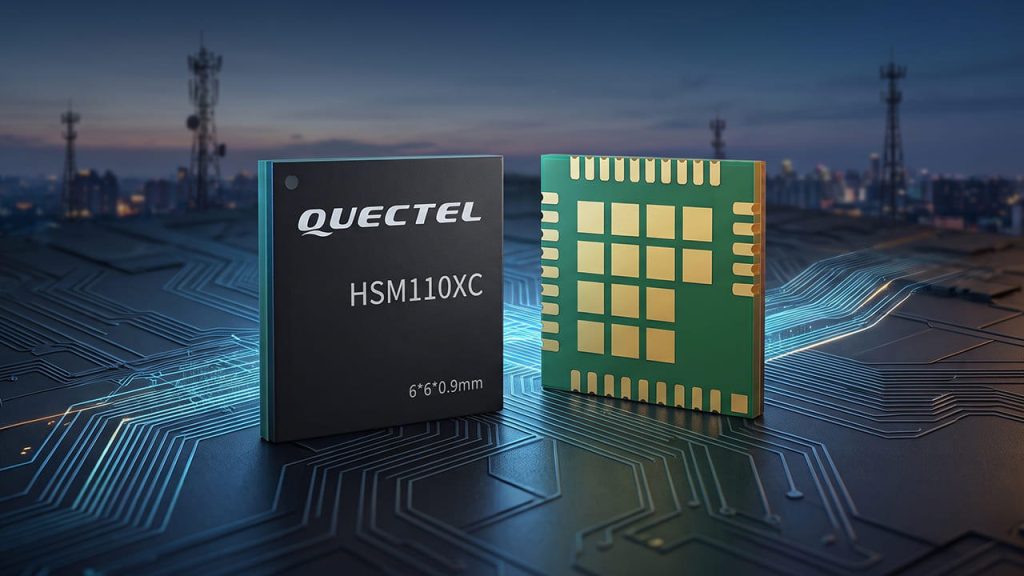

Quectel HSM110XC is an ultra-compact, low-power Bluetooth Low Energy (BLE 5.4 SiP (System-in-Package) module designed for IoT and smart home applications.
Key Technical Specifications
- Protocol: Bluetooth Low Energy (BLE) 5.4
- Processor: ARM Cortex-M4 (up to 64 MHz)
- Memory: 1 MB Flash memory and 80 KB SRAM
- Dimensions: 6.0 x 6.0 x 0.9 mm (LGA package)
- Operating Voltage: 1.71 V to 3.6 V
- Operating Temperature: -40 ~ 85°C
- Interfaces: Up to 25 GPIOs (multiplexed for UART, SPI, 12C, and ADC) via QuecOpen®
- Antenna: Internal PCB antenna with optional external pin support
- Security: AES-128, AES-256, and SHA-256 encryption support
Power Consumption
- Broadcasting Current: ~10 µA (at a 1-second interval)
- Connection Current: ~7 µA (at a 1-second interval)
Common Applications
- Smart home systems
- Industrial loT (IIoT)
- Wearable devices and sensor networks
- Beacon and asset tracking solutions
