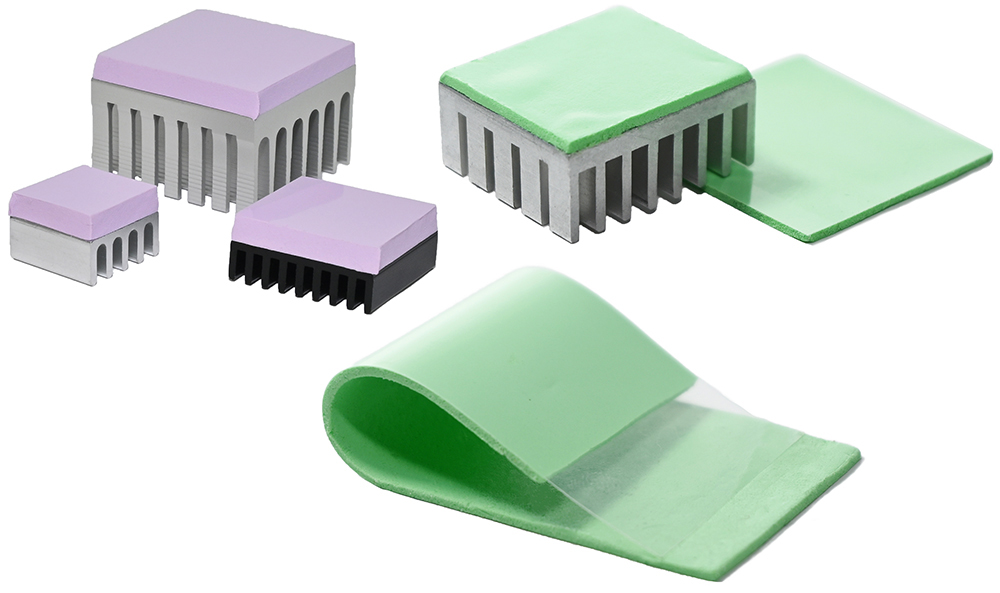

T-Global Technology TG-AD series thermal pads are formulated to provide the ideal combination of low hardness and high thermal conductivity with good electrical isolation
The TG-AD75 delivers 7.5 W/mK thermal conductivity with a Shore 00 hardness of 25, the TG-AD66 offers 6.5 W/mK thermal conductivity with a 25 Shore 00 hardness, and the TG-AD30 provides 3.0 W/mK with a 20 Shore 00 hardness.
The TG-AD series offers exceptional void filling between components and heat sinks and requires only light pressure to fill gaps. They provide low thermal impedance for the most demanding applications and can be supplied in either standard sheets or custom die-cut parts with thicknesses ranging from 1.0 mm to 8.0 mm.
Key Features
- Low thermal impedance
- High dielectric breakdown voltage: ≥5 kV/mm
- Operating temperature range: -50°C to 150°C
- Good two-sided natural tack
