Transparent PMOLED (TOLED) – See-Through Display for Optical Systems

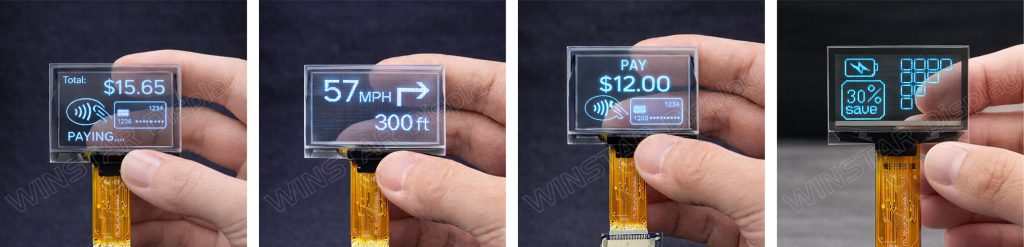

The WE0012856A is a chip-on-glass (COG) module delivering high transparency and clear data overlays while keeping the background fully visible. Sky Blue is the standard colour, with other colours (White, Green, Yellow, Red) available on request. Interfaces supported include 6800, 8080, SPI, and 1²C for flexible integration.
Key Features
- Size: 1.51 inch
- Dot Matrix: 128×56 dots
- Structure: Chip-on-Glass (COG)
- Driver IC: SSD1309
- Interface: 6800 / 8080 / SPI / 1²C
- Logic Voltage: 3V
- Power Consumption: 12mA (typical), 18mA (max) at 50% checkerboard pattern
- Brightness: 100 cd/m² (min), 120 cd/m² (typ)
- Duty Cycle: 1/56
- Transmittance: 50%
- Operating Temperature: -40°C to 80°C
