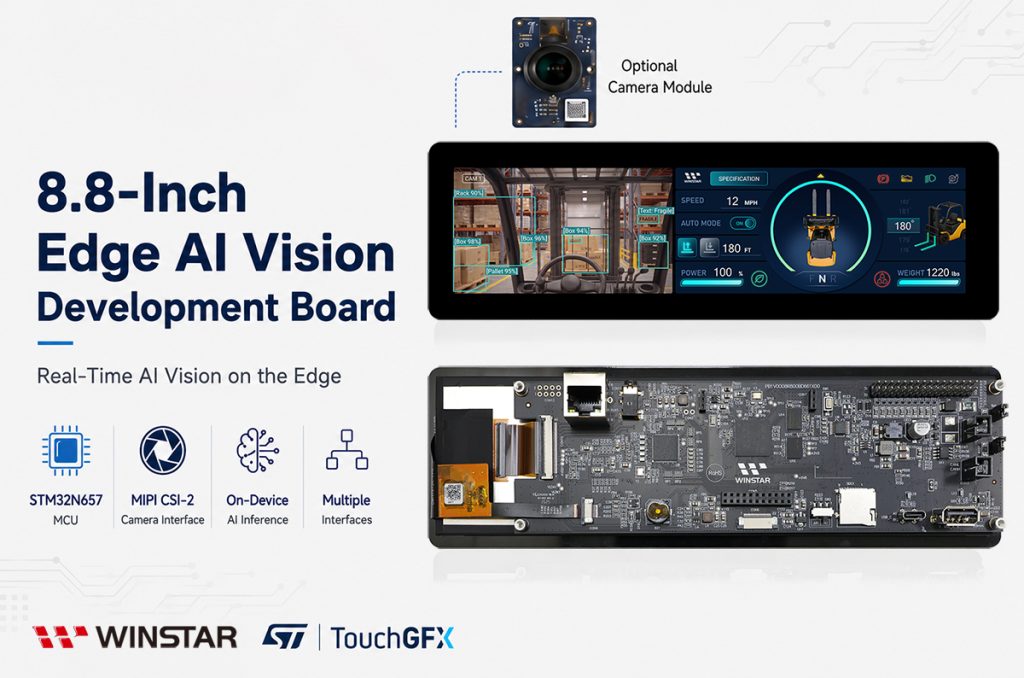

WLOF00088000BGXAANA00 is the industry’s first 8.8-inch bar-type HMI Development Board, powered by the STM32N657 MCU from the STM32N6 series. Designed for Embedded Al and STM32 Al development, it integrates an ultra-wide IPS touch display, MIPI CSI-2 camera support, and on-device Al processing into a single platform for Edge Al Vision and HMI applications.
Built for rapid Al vision application development, the board supports TouchGFX for GUI development, includes 64 MB external Flash, and provides extensive communication and expansion interfaces for industrial HMI, machine vision, and embedded Al applications.
Key Technical Specifications
- Core Processor : Powered by the STM32N657 MCU featuring the integrated Neural-ART NPU for dedicated hardware Al acceleration.
- Form Factor : Unique 8.8-inch bar-type (stretched) aspect ratio, engineered specifically for narrow or space-constrained mounting environments.
- Camera Interface : Built-in MIPI CSI-2 interface, allowing users to hook up external camera modules (such as the B-CAMS-IMX unit).
- Local Inference : Processes intensive computer vision workloads entirely on the edge, eliminating the need for a cloud connection to perform machine learning.
- Resolution : 480 × 1920 pixels
- Communication Interface : CAN FD / RS485 / RS232 / UART / Ethernet / SPI / I²C / USB
- Touch Panel : Projected Capacitive Touch Panel (PCAP)
- Operating Voltage : 9V~36 Vdc
