When display space is limited, choosing the right form factor becomes critical.

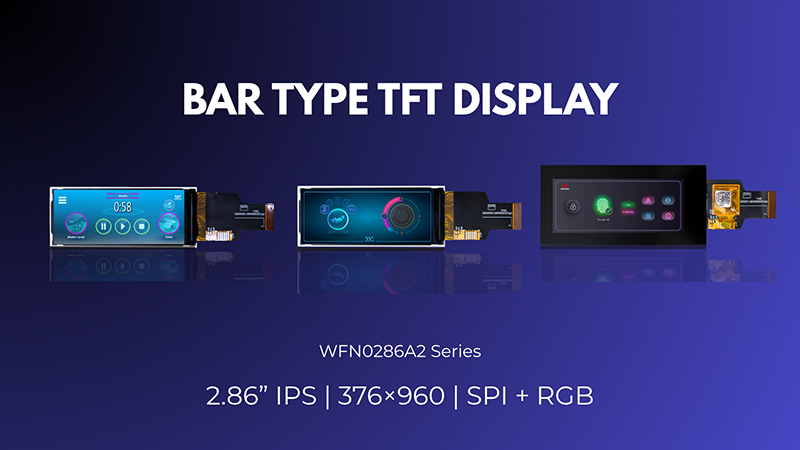

The WFN0286A2 Series features a 2.86-inch bar-type IPS TFT display with 376×960 resolution, designed for compact systems that require an elongated display layout.
Model No. WFN0286A2SOWADNA000
Key Features:
- Size: 2.86 inch
- Resolution : 376 x 960 pixels
- View Direction : IPS
- Interface : SPI+RGB
- Driver IC : ST7701P
- Control-Board : No
- Brightness(cd/m2) : 900
- Frame Through Hole : No
- Touch Screen : Projected Capacitive Touch Panel (PCAP) + Optical Bonding
- Detect Point : 2 Fingers
- Operating Temperature : -30°C to 85°C (Wide Temperature)
Other options in this series include the high brightness version without touch, WFN0286A2SOWADNN000, and the standard brightness version without touch, WFN0286A2TOWADNN000, allowing you to choose the most suitable model based on different application requirements.
